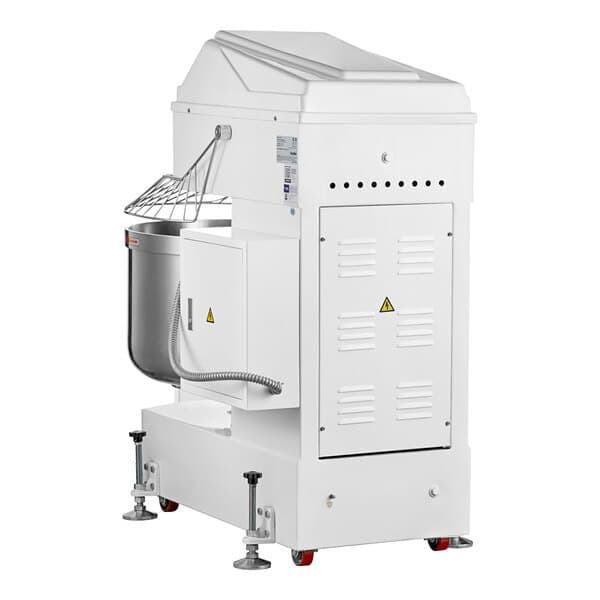

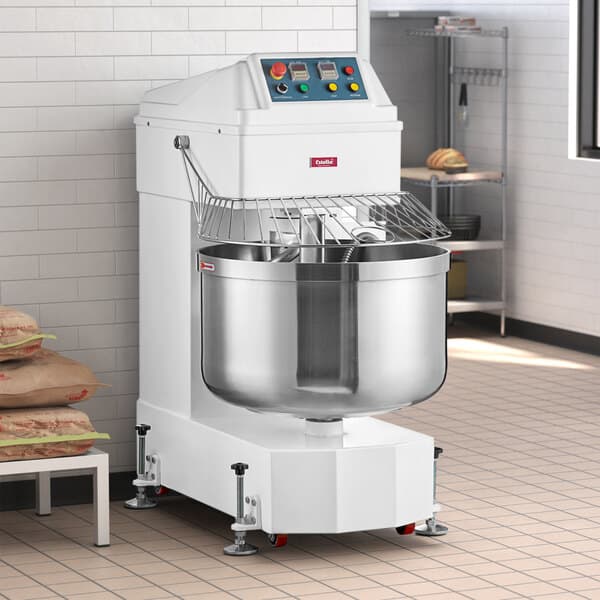

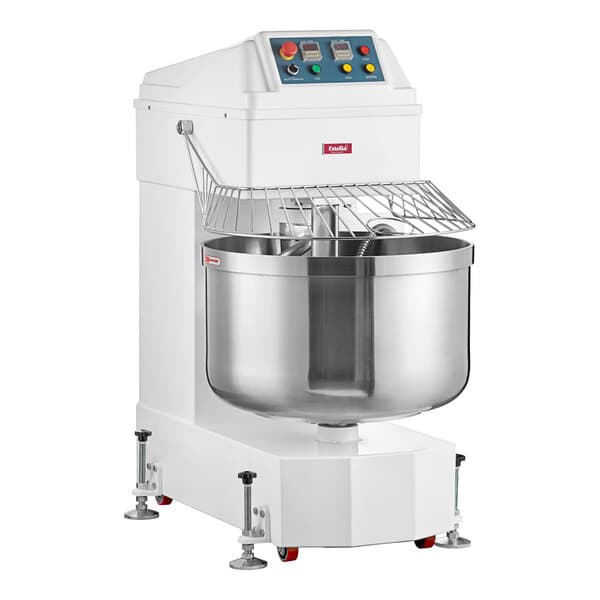

160 Qt. / 228 lb. Two-Speed Spiral Dough Mixer - 220V, 3 Phase, 7 1/2 HP
160 Qt. / 228 lb. Two-Speed Spiral Dough Mixer - 220V, 3 Phase, 7 1/2 HP
Buy at
-
- Width 45 11/16 Inches
- Depth 35 3/8 Inches
- Height 63 Inches
- Bowl Height 16 15/16 Inches
- Bowl Diameter 27 5/8 Inches
- Amps 28 9/10 Amps
- Hertz 60 Hz
- Phase 3 Phase
- Voltage 220 Volts
- Wattage 6350 Watts
- Bowl RPM 12 RPM
- Casters With Casters
- Flour Capacity 143 lb.
- Flour Capacity 17 3/5 lb.
- Hook RPM 150 RPM
- Hook RPM 200 RPM
- Horsepower 8 1/2 HP
- Mixer Type Spiral
- Number of Mixing Heads 1 Head
- Plug Type Hardwire
- Power Type Electric
- Product Type Equipment
- Removable Bowl Without Removable Bowl
- Speeds 2 Speed
- Timer With Timer
- Transmission Type Belt-Driven
- Type Spiral Mixers
- Volume Capacity 160 qt.
- Weight Capacity 228 lb.
-
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
-
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
-
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
-
View Compatible parts
Product Features
-
Easy-to-Use Control Panel
This spiral dough mixer, which folds more efficiently than other mixing styles, has an intuitive control panel that includes 2 auto-stop timers, which keep careful track of how long the mixer churns and prevent the dough from becoming overworked.
-
Auto-Stop Failsafe
As a built-in precaution, the mixer has an auto-stop failsafe that will turn off the unit once the timer hits zero, which is helpful for when employees are preoccupied with other tasks throughout the kitchen.
-
Grated Lid for Safety
The Estella SM160 228 lb. mixer also features a steel grated lid that allows for ingredients such as flour to be added to the dough as it is mixing without having to shut it off. The grate also keeps employees from sticking their hands in the bowl when the mixer is on, improving safety.
-
Heavy-Duty Efficiency
This unit has (2) 2-speed, belt-driven motors that will handle a strenuous workload while yielding impressive results, and it has a power output of 6350W. It boasts 7 1/2 hp for the hook and 1 hp for the bowl. With this model, you can switch between speeds without having to stop the mixing process. A sturdy base will keep the mixer in place while handling the rigors of commercial establishments. For easy transport and cleaning, this mixer includes casters on the bottom. This unit requires a 220V electrical connection for operation.
Estella Spiral Dough Mixer Cleaning Instructions
Learn how to clean your spiral dough mixer from Estella Equipment. With the help of this video, you can ensure that your mixer is sanitary and effective.
The Estella SM160 228 lb. spiral dough mixer will handle a range of dough products at your bakery, pizzeria, or restaurant. Designed with commercial applications in mind, this dough mixer has a durable fixed 160 qt. stainless steel bowl and can handl...
What Are Customers Saying
I honestly thought that the price would mean it was cheaply built and I was hoping to get a year out of it, long enough to establish ourselves and hopefully be able to buy something "nicer". 2 years later and we make 100's of lbs of dough daily and other than a broken safety switch thaty cool broke, this thing has performed like a champ. It is clean I'm place, so be aware of that but that doesn't bother me. Takes 10 minutes to clean and sanitize either way. This machine doesn't suck.
